OK, guys, gather around! Today, I want to share my little adventure diving into the world of MotoGP aero. It all started when I was watching a race, and I noticed something weird about the bikes – these strange winglets and funky fairing shapes. I mean, I’ve been watching MotoGP for years, but this aero stuff was new to me. So, I decided to dig in and see what’s up.

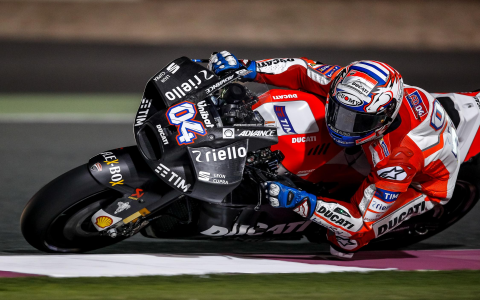

First, I did what any curious person would do – I started Googling. I found out that these aero devices are all about creating downforce. Yeah, like in F1, but on two wheels! The idea is to generate a low-pressure area that literally sucks the bike onto the track, giving the riders more grip, especially when they’re leaned over in corners. Cool, right? And I saw that Ducati was the first team to really go crazy with these winglets, taking inspiration from F1.
Then, I started digging into the rules. Turns out, MotoGP has a whole set of regulations about the size and shape of these aero parts. For example, they recently decided to make the front fairings a bit smaller, reducing the maximum width from 600mm to 550mm. And the width at the rear is also reduced from 1250mm to 1150mm. They even said the front nose of the bike should be moved back by 50mm. I guess they don’t want the bikes to turn into full-blown airplanes!
The next thing I did was actually try to understand how this stuff works. I’m no engineer, but I started looking at diagrams and reading explanations. The basic idea is that when a bike is leaned over, these aero devices create an airflow that pushes the bike down, adding to the mechanical grip from the tires. It’s like having an invisible force holding the bike onto the track. I even found out that this is called “aerodynamic grip,” which sounds super fancy.
I also stumbled upon some interesting stuff about how teams are using F1 technology. Apparently, KTM is now working with folks from Red Bull Advanced Technologies – you know, the guys who make those super-fast F1 cars. It’s like a meeting of the minds between two-wheel and four-wheel racing. It’s pretty wild to think about how technology developed 50 years ago in F1 is now being used in MotoGP.

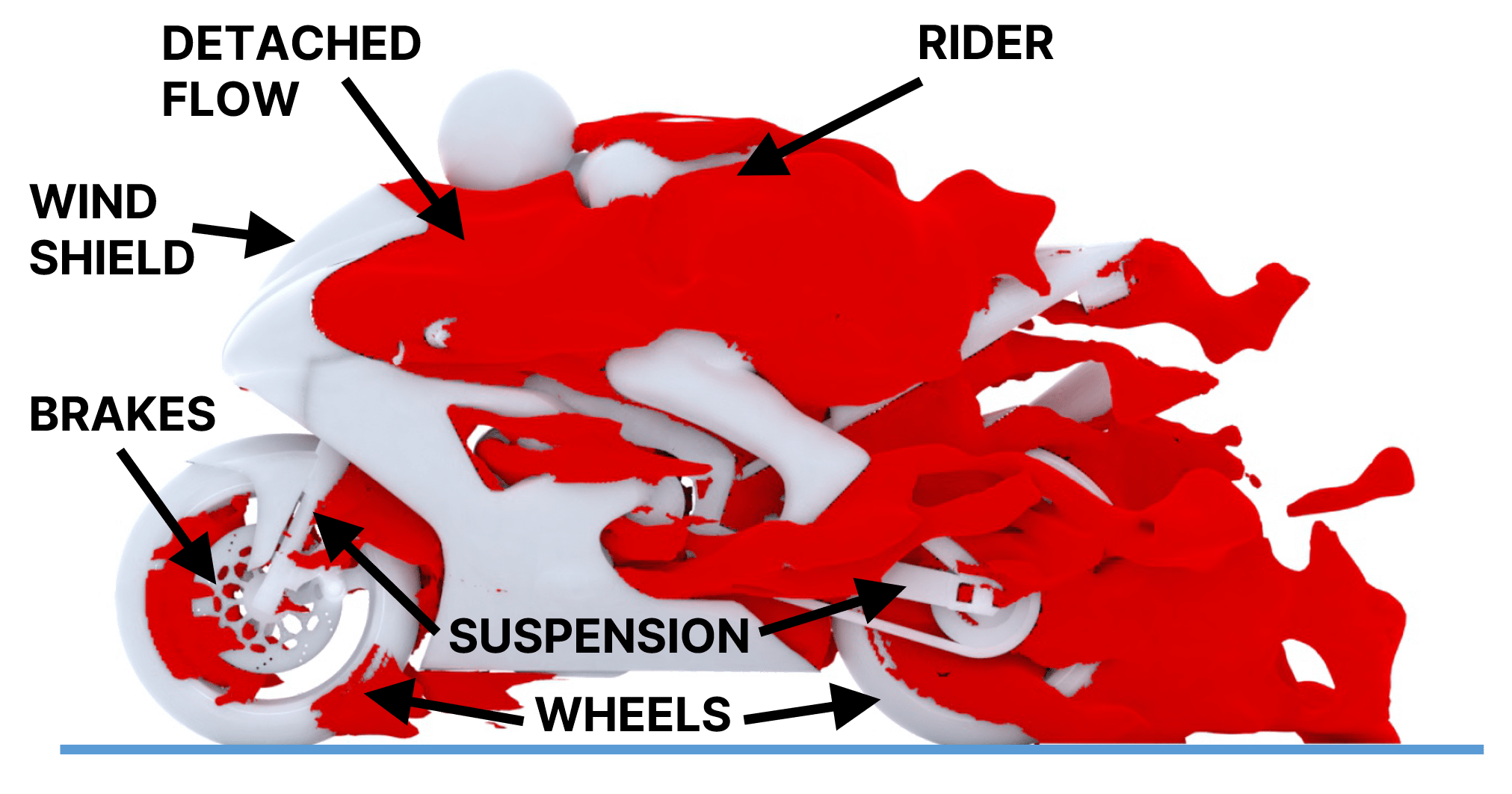

After getting a basic understanding, I decided to get my hands dirty. I managed to find some software that lets you simulate airflow around objects. I won’t lie, it was pretty challenging at first. But I started playing around with different winglet shapes and fairing designs, trying to see how they affected the downforce and drag. It was like being a kid in a candy store, except the candy was virtual and shaped like motorcycle parts.
I spent hours tweaking and testing, and slowly but surely, I started to see patterns. I noticed that even small changes in the angle or size of a winglet could make a big difference in the amount of downforce generated. It was a real eye-opener. I mean, I knew that aerodynamics was important, but actually seeing it in action was something else.
Here’s a simple breakdown of what I learned:
- Downforce is king: The more downforce you can generate, the more grip the bike has, especially in corners.
- Drag is the enemy: You want to minimize drag, which is the force that slows the bike down.
- It’s a balancing act: You need to find the right balance between downforce and drag to optimize performance.
And a simple overview of MotoGP:
- 21 Grand Prix: Each race is about 40-45 minutes long and covers 100-130 km.
- Points: The top 15 riders score points, with 25 for first place and 1 for fifteenth.
My Experiments
In my little digital workshop, I started to experiment with different setups. I tried adding more winglets, changing their angles, and even redesigning the fairing. Some of my experiments were total failures – the bike would either become unstable or slow as a snail. But some of them actually worked! I managed to create a few designs that significantly increased downforce without adding too much drag.
I felt like a mad scientist, and honestly, it was a lot of fun. Of course, I’m just a guy messing around on his computer. The real MotoGP teams have teams of engineers and wind tunnels and all sorts of fancy equipment. But still, it was cool to get a little taste of what they do.
Now, I’m not saying I’m an expert or anything. Far from it. But this little project has given me a whole new appreciation for the complexity of MotoGP bikes. These things are engineering marvels, and the aerodynamics are just one piece of the puzzle. It’s mind-blowing to think about all the work that goes into designing and building these machines.
So, there you have it – my journey into the world of MotoGP aero. It’s been a fun and educational ride, and I’m definitely going to keep playing around with this stuff. Who knows, maybe one day I’ll design the ultimate virtual MotoGP bike! Or maybe I’ll just keep watching the races and marveling at the real engineers who make it all happen. Either way, I’m hooked.
