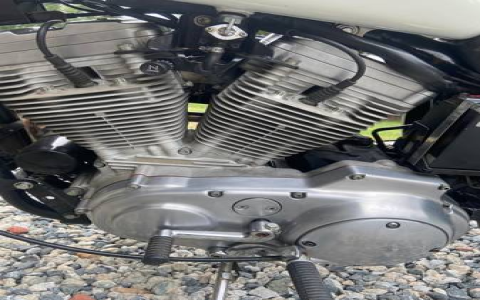

Alright, so let me tell you about this Evolution Sportster engine I’ve been wrestling with. It wasn’t like I had nothing better to do, but this old bike, it just kinda called to me, you know? Sounded a bit tired, a bit wheezy, and I thought, “Heck, I can probably breathe some life back into that.” Everyone always bangs on about how the Evo engine was a game changer for Harley, pulling them out of some rough times. Reliable, they said. Well, I was about to find out just how reliable, or at least, how rebuildable.
Getting Started – The Teardown
First things first, I got the bike up on the lift. Man, even before I touched a wrench, I just stood there for a bit, looking at it. It’s a fairly straightforward lump, the Sportster Evo, not like some of these newer, overly complicated things. So, I started by draining the fluids – oil, naturally. Then came the exhaust, then the carb, then all the little bits and bobs you gotta get out of the way. It’s always more than you think.
Pulling the rocker boxes off wasn’t too bad. Then the heads. That’s when you start to really see what you’re dealing with. Carbon build-up, the usual stuff. The cylinders came off next. I was bracing myself, but the bores actually looked pretty decent, no major scoring. Phew. The pistons, though, they’d seen better days. Skirts were a bit scuffed, rings were definitely tired.
The Nitty Gritty – Cleaning and Checking
This is the part nobody loves, but it’s gotta be done. Cleaning. So much cleaning. Degreaser became my best friend for a few days. Every nut, bolt, and component got a bath. I laid everything out, inspected each part. The cams and lifters seemed okay, which was a relief. Those can be a pain to source and replace without spending a ton.
I took the cylinders and heads to a local guy, just to have them checked properly, maybe a light hone on the cylinders. He confirmed what I thought – cylinders were good for a hone, heads just needed a good de-coke and valve seat check. Saved me a bit of cash there, not needing new jugs.
Parts, Parts, Parts
So, I needed a new set of piston rings, gaskets all around, naturally. Some new seals here and there. I spent a fair bit of time online, looking at options. You can go OEM, you can go aftermarket. I ended up with a decent quality aftermarket gasket kit and some standard-sized rings. Nothing too fancy, just good solid stuff. The waiting for parts to arrive is always the worst bit, stalls all your momentum.
Putting It All Back Together
Once all the shiny new bits and cleaned old bits were laid out, it was assembly time. This is where you gotta be patient. Take your time. I carefully gapped the new piston rings, installed them on the pistons. Getting those wrist pin clips in? Yeah, that’s always a fun time. Fought me a bit, but I won in the end.
Sliding the cylinders back over the new rings, very carefully, lots of assembly lube. Then the heads, torquing everything down to spec in the right sequence. It’s like a very specific, oily puzzle. Rocker boxes back on, pushrods adjusted. Man, by the end of it, my hands were sore, and I smelled like a refinery, but it was starting to look like an engine again.
I reinstalled the carb, hooked up the oil lines, put the exhaust back on. Checked everything. Then checked it again. You really don’t want to miss anything at this stage.
The Moment of Truth
Oil in, bit of gas in the tank. I hit the starter. It cranked… coughed… cranked some more… and then BAM! It fired up. Rough at first, as expected. But it was running! I let it warm up a bit, listening for any scary noises. None, thankfully. Just that distinctive Harley potato-potato, maybe a bit crisper than before.
I spent some time tuning the carb, getting the idle right. Took it for a short spin around the block. Felt good. Felt strong. Definitely more responsive.
So, What’s the Verdict?
Well, after going through all that, I gotta say, that Evo design? It’s pretty robust. They weren’t kidding when they said it was reliable and sort of brought Harley back from the brink. It’s straightforward enough that a guy like me can tear it down and put it back together in his garage without too many special tools or a degree in engineering. It took time, it took patience, and yeah, a bit of swearing here and there, but the end result? Totally worth it. That old Sportster’s got a new lease on life, and I learned a hell of a lot. Plus, there’s nothing quite like the satisfaction of hearing an engine you rebuilt fire up for the first time. Solid piece of kit, that Evo.
