Alright, buckle up folks, because today I’m diving deep into a project I just wrapped up: bringing a 2000 Honda XR200R back to life. This wasn’t a simple oil change; this was a full-on resurrection.
First things first, I snagged this XR200R for a steal. It was sitting in a buddy’s garage, collecting dust and cobwebs. He said it hadn’t run in years, something about a carb issue and a general lack of motivation to fix it. Perfect! I love a challenge.
So, I hauled it back to my garage and started the initial assessment. Tires were flat, chain was rusted solid, and the whole thing was covered in grime. But underneath all that, I could see the potential. This bike was begging to be ridden again.
The Teardown Begins
The first thing I did was strip it down. I’m talking plastics, tank, seat – everything came off. I wanted a clean slate to work with. This gave me a good chance to inspect the frame for any cracks or damage. Thankfully, it was solid as a rock.
- Carb Cleaning: This was the big suspect. I completely disassembled the carb, soaked all the parts in carb cleaner, and then meticulously cleaned every jet and passage with tiny wires. I even used compressed air to make sure everything was clear.
- New Spark Plug: A no-brainer. A fresh spark plug is always a good starting point.
- Fuel System Overhaul: Drained the old gas (which smelled like turpentine), cleaned the fuel tank, and replaced all the fuel lines. I also added an inline fuel filter to prevent future clogs.
Engine Inspection and TLC
I didn’t want to get too deep into the engine without first trying to get it running. I checked the oil (it was low and looked like mud), changed it with fresh oil, and then checked the compression. Compression was decent, so I moved on.
- Valve Adjustment: These engines are known for needing valve adjustments. I checked the valve clearances and adjusted them to the factory specs. This made a HUGE difference in how smoothly the engine turned over.
Reassembly and First Start
Once I was satisfied with the engine, I started putting everything back together. New tires, cleaned and lubed the chain, replaced the air filter, and reinstalled all the plastics. It was starting to look like a real motorcycle again!
The moment of truth. I filled the tank with fresh gas, turned on the fuel, and kicked it over. And…nothing. I kicked it a few more times, and still nothing. I was starting to get that sinking feeling.
Then I remembered something I read online: these XR200Rs can be a bit cold-blooded. I pulled out the choke, gave it a few more kicks, and BAM! It sputtered to life! It sounded rough at first, but after a few minutes of warming up, it smoothed out and idled like a champ.
Test Ride and Fine-Tuning
Once the bike was warmed up, I took it for a spin around the block. It ran surprisingly well, but there were a few minor issues. The idle was a bit high, and it was slightly lean at low RPMs.
I spent the next hour or so fine-tuning the carb. I adjusted the idle screw, tweaked the air/fuel mixture screw, and eventually got it running perfectly. It now idles smoothly, has plenty of power throughout the RPM range, and doesn’t bog down or hesitate.
The Finished Product

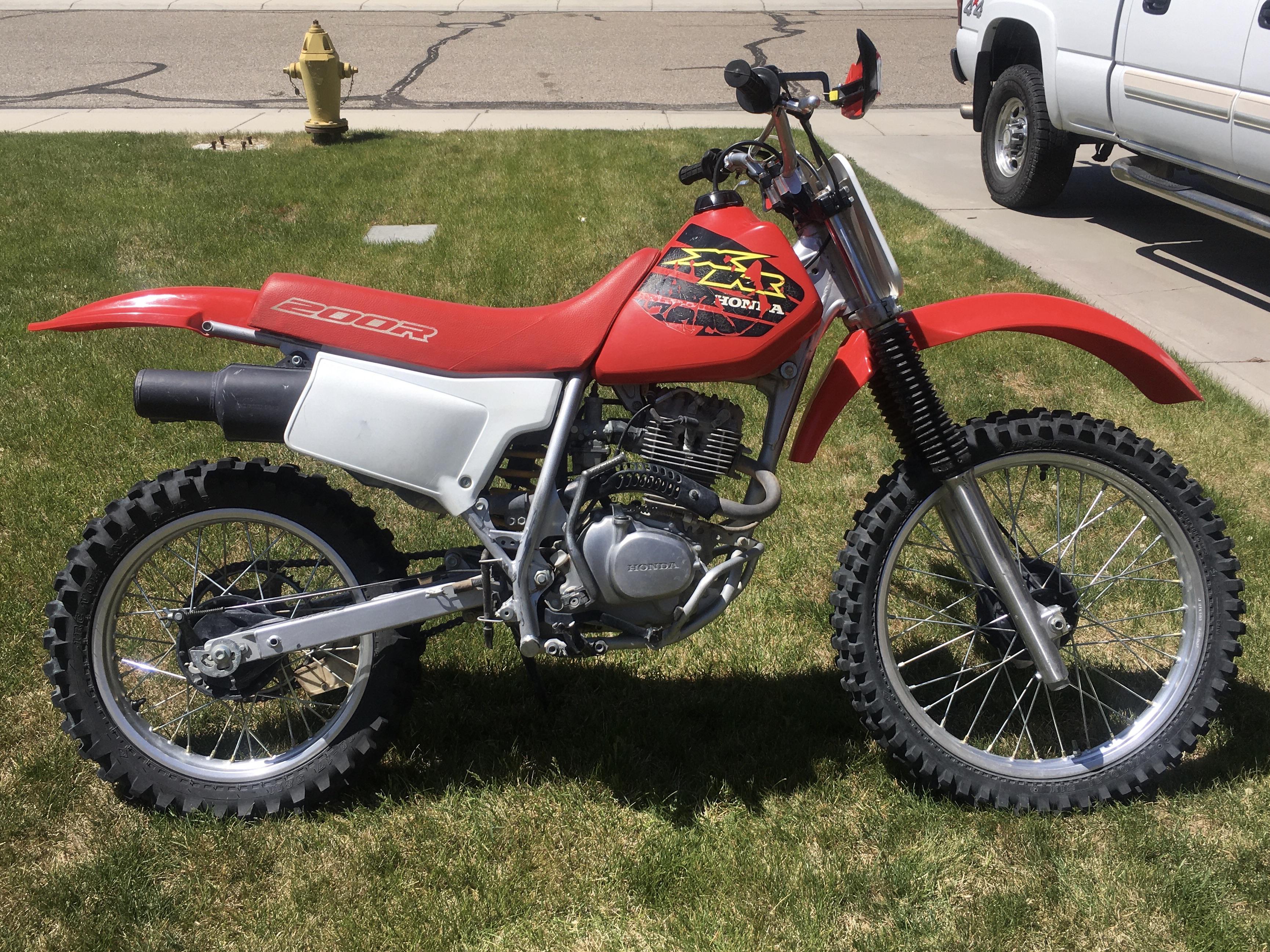

After a good wash and polish, the 2000 Honda XR200R looks almost brand new. It starts easily, runs great, and is an absolute blast to ride. It’s a testament to the durability and simplicity of these bikes.
This project was a ton of fun, and I learned a lot along the way. If you’re looking for a simple, reliable trail bike, you can’t go wrong with an XR200R. Just be prepared to put in a little elbow grease!
Lessons Learned:
- Carb cleaning is crucial for bikes that have been sitting for a long time.
- Valve adjustments make a huge difference in engine performance.
- Don’t give up easily! Sometimes it just takes a little persistence to get things running right.
Now, if you’ll excuse me, I’m going for a ride!
